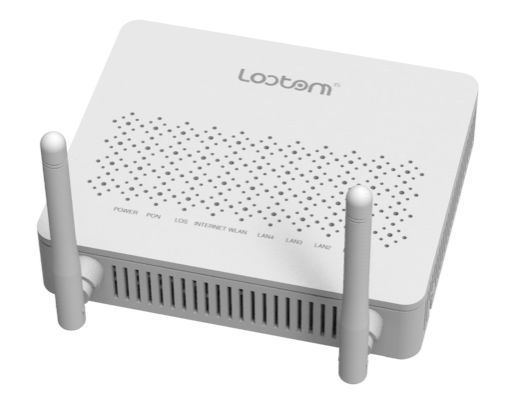

EPON ONU 4FE PORTS WITH WIFI GDONU100-4FW
GDONU100-4FW follows the EPON communication standard. It is a gateway device with routing function for home and ...
EPON ONU 4FE PORTS WITH WIFI GDONU100-4FW
                            |
                                             Model  |

                                             GDONU100-4FE  |

|
                                             User Interface  |

                                             4 * 10/100M BASE-T self-adaptive RJ45 interfaces  |

|
                                             PON Interface  |

                                             Symmetrical transmission rate of 1Gbps for downlink and uplink Network coverage radius: 20KM Optical connector: SC/PC High sensitivity optical receiver ≥-26dBm Transmitting power:0~4dBm Security: ONU identification mechanism  |

|
                                             Dimension  |

                                             170mm*125mm*33mm(w*d*h) box:220mm*230mm*70mm 0.5kg  |

|
                                             Installation: plug and play  |
                                    |
|
                                             Heat Dispersion  |

                                             Long term use will not result in any form of performance degradation or component damage  |

|
                                             Environmental Requirement  |

                                             Operating environment:-5℃~60℃;10%~90% non-condensation  |

|
                                             Storage environment:-40℃~80℃;5%~95% non-condensation  |
                                    |
|
                                             Power Supply  |

                                             Switch adapter  |

|
                                             Input voltage: AC 110V~240V,50/60Hz  |
                                    |
|
                                             Scope range of input rated voltage:domestic ±20%;international ±10%  |
                                    |
|
                                             Power≤5W  |
                                    |
|
                                             Body Case  |

                                             Plastic  |



|
                                             Frequency range  |

                                             2.4~2.4835GHz  |

|
                                             Transmission rate  |

                                             11n:270/243/216/162/108/81/54/27Mbps 135/121.5/108/81/54/40.5/27/13.5Mbps 130/117/104/78/52/39/26/13Mbps 65/58.5/52/39/26/19.5/13/6.5Mbps 135/121.5/108/81/54/40.5/27/13.5Mbps 130/117/104/78/52/39/26/13Mbps 65/58.5/52/39/26/19.5/13/6.5Mbps  |

|
                                             IEEE802.11g: 54/48/36/24/18/12/9/6(self-adaption)  |
                                    |
|
                                             IEEE 802.11b :11/5.5/2/1M(self-adaption)  |
                                    |
|
                                             Working channel amount  |

                                             13  |

|
                                             Screen show  |

                                             DSSS  |

|
                                             Data modulation  |

                                             DBPSK、DQPSK、CCK and OFDM(BPSK/QPSK/16-QAM/64-QAM)  |

|
                                             Sensitivity@PER  |

                                             135M:-65dBm@10% PER 54M:-70dBm@10% PER 11M:-85dBm@8% PER 1M:-91dBm@8% PER  |

|
                                             Transmission distance  |

                                             Indoor:<120m outdoor:<360m Outdoor:<360m(depends on the environment)  |

|
                                             RF power supply  |

                                             20dBm EIRP(11b)  |
