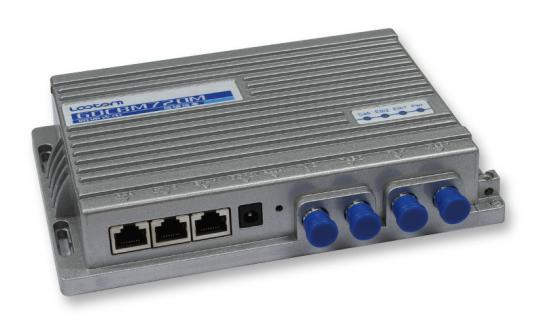

GDCBM720M indoor EOC master
GDCBM720M series independent master is the multi-media access device which is based on HomePlug AV technique, the master ...
GDCBM720M indoor EOC master
                            |
                                             Item  |

                                             Description  |

|
                                             Standard  |

                                             IEEE802.3,IEEE802.3x,IEEE802.3u,IEEEP1901  |

|
                                             EoC protocol  |

                                             Comply with HomePlug AV standard  |

|
                                             Protocol  |

                                             CSMA/CA  |

|
                                             Physical rate  |

                                             300Mbps  |

|
                                             Modulation method  |

                                             support 4096/1024/256/64/16/8-QAM、QPSK、BPSK,ROBO  |

|
                                             Data channel  |

                                             Support data transmit between ethernet and coaxial cable network  |

|
                                             Transmission distance  |

                                             1 km through coaxial cable  |

|
                                             Security  |

                                             128-bit AES encryption  |

|
                                             VLAN  |

                                             IEEE802.1Q(VLAN lagging)  |

|
                                             QoS  |

                                             Support ToS and CoS package classification  |

|
                                             flow control  |

                                             Support flow control based at port  |

|
                                             SNMP  |

                                             SNMPv1v2v3  |

|
                                             802.1X  |

                                             Support IEEE802.1X access certification  |

|
                                             Watchdog  |

                                             Support monitoring CPU by watchdog  |

|
                                             Management  |

                                             Support user management based at SNMP,WEB and CLI  |

|
                                             LED light  |

                                             Power, Ethernet, Cable  |

|
                                             Interface  |

                                             2 TV interface,2 RF interface,2 Gbps ethernet ports,1 RST button  |

|
                                             Power consumption  |

                                             ≦9W  |

|
                                             Power supply  |

                                             Input : DC12V  |

|
                                             Dimension  |

                                             162mm×168mm×34mm  |

|
                                             Weight  |

                                             0.5KG  |

|
                                             Operation Temperature  |

                                             0~45℃  |

|
                                             Storage Temperature  |

                                             -20~70℃  |

|
                                             Operation humidity  |

                                             10% - 90%(non-condensing)  |
